Techniques

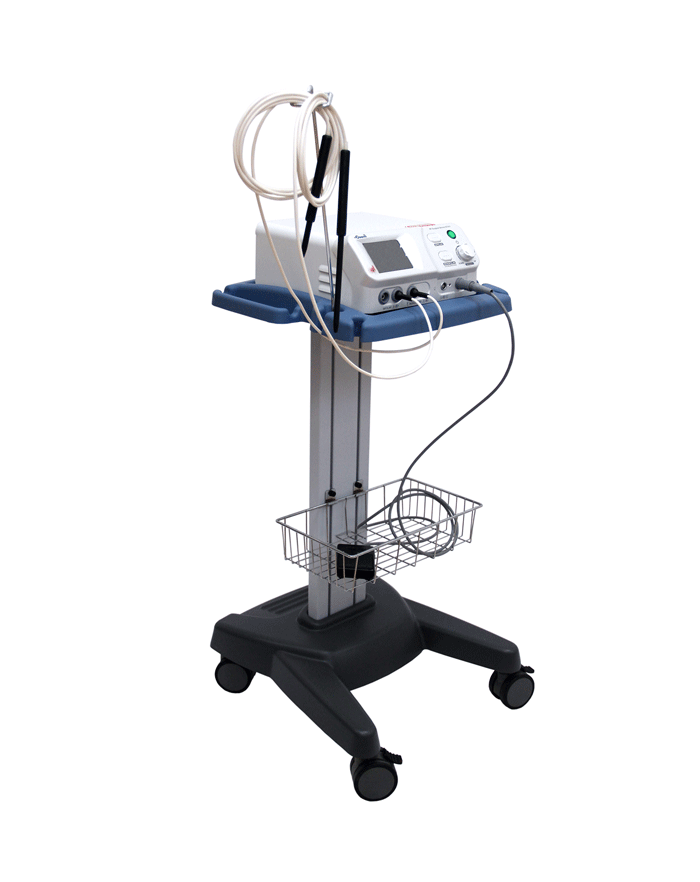

Dr.Oppel ST-501
Dr.Oppel's electrode is not being heated by itself. Electrode lets the cellular tissue produce the joule heat, and operates hemostasis, cutting and coagulation. 4MHz radio frequency makes possible precise cutting and coagulation even in water. Moreover, coagulation depth is determined by electrode as 5mm, 3mm and 2mm.
There is no carbonization and damages to the surrounding cellular tissue by electric spark, and safety can be secured because this system is free from electric shock and burn which electric surgical units make.
Specification
Output Power: Monopolar-125W (Max 100±20%), Bipolar-50W (Max 50±20%)
Frequency: 4MHz
Input Voltage: 100/110/120/220/230/240 VAC, 50/60Hz
Time Selection: Continuous, 1sec, 1/2sec, 1/4sec, 1/8sec
Power Consumption: 450VA + 10% Under on maximum load
Weight: 10kg
Dimension: Main Unit: 225 (W) x 300 (L) x 155 (H) mm
